M-S-series BroadLighters. Benchtop Broadband Light Sources.


M-S-series BroadLighter. Benchtop Broadband Light Sources.

Product description

Superlum M-S-series BroadLighters, the second generation of our S-series BroadLighter light sources, are high-power, very wide spectrum and low coherence AC powered benchtop light sources based on a single mode fiber coupled superluminescent diode modules (SLDs) of Superlum.

Features

  • Very high output power exceeding 30 mW in selected models
  • Wide optical spectrum
  • Short coherence length
  • Changeable output power
  • -30 dB peak optical isolation
  • Models with optical attenuators
  • Remote control through USB or by TTL
  • Wide input range power supply unit (100-240 V AC)
  • Two years warranty

Changing output power

Superlum offers two types of M-S BroadLighters, namely, with and without a Variable Optical Attenuator (VOA). The former has the suffix "-VA" in the model number. In both designs, output power is changeable within 0–100% with the step of 10%. Spectral performance is guaranteed at the full (100%) output power.

In M-S-series light sources without VOAs, the optical output power is changed by varying the SLD drive current, entailing a change in the shape of the SLD spectrum. The change is not significant for models with a bell-shaped spectrum but may be large for models with a complex, multi-humped spectrum (see the examples below).

Spectrum of BroadLighter M-S-795-G-I-15
  Spectrum of BroadLighter M-S-795-G-I-15. Left – optical spectrum at output levels: 100% (20 mW SMF, black line); 50% (10 mW SMF, blue line); 10% (2 mW SMF, red line). Right – same but normalized: 100% (black line); 10% (red line).

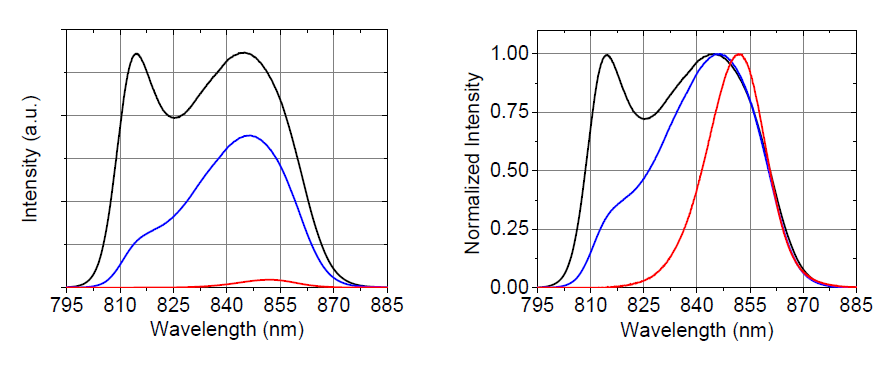

Spectrum of BroadLighter M-S-840-B-I-15
  Spectrum of BroadLighter M-S-840-B-I-15. Left – optical spectrum at output levels: 100% (20 mW SMF, black line); 50% (10 mW SMF, blue line); 10% (2 mW SMF, red line). Right – same but normalized: 100% (black line); 10% (red line).

In M-S-series BroadLighters with VOAs, SLD itself always emits 100% of its power. The output power is changed with the help of a broadband VOA that is placed after the SLD module and the optical isolator. For these BroadLighters, changes of optical spectrum with output power are negligible (see the example below). As a rule, Superlum offers M-S-series light sources with VOAs when the light source is based on an SLD with multi-humped spectrum. However, M-S-series devices with VOAs and SLDs with bell-shaped spectrum are available upon request. M-S-series light sources with VOAs are recommended for applications requiring changeable output power but stable spectral shape and center wavelength.

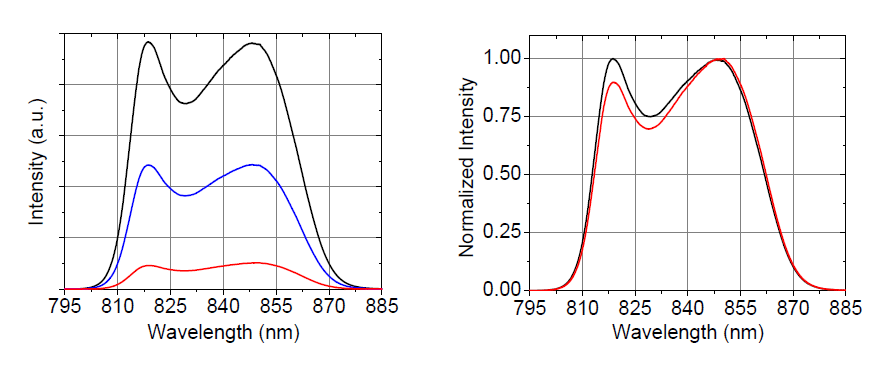

Spectrum of BroadLighter M-S-840-B-I-15-VA
  Spectrum of BroadLighter M-S-840-B-I-15-VA. Left – optical spectrum at output levels: 100% (15 mW SMF, black line); 50% (7.5 mW SMF, blue line); 10% (1.5 mW SMF, red line). Right – same but normalized: 100% (black line); 10% (red line).

Optical isolator

All standard light sources have an appropriate built-in optical isolator to protect the SLD from optical feedback.

Optical characteristics of standard models without VOA

Key parameters of standard models are listed in the table below. The optical spectrum and the coherence function can be viewed as a web page (HTML) or downloaded in PDF format.

bell-shaped spectrum – bell-shaped spectrum, multi-humped spectrum – multi-humped spectrum.

Model number Center wavelength (nm) Spectral width, FWHM (nm) Output power, SM (mW) Optical spectrum and coherence function
Min. Typ. Min. Typ.
M-S-670-G-I-4 670 ± 10 6 7 4.0 5.0  bell-shaped spectrum HTML | PDF (52 KB)
M-S-785-B-I-15 785 ± 10 40 45 15.0 20.0  multi-humped spectrum HTML | PDF (37 KB)
M-S-795-G-I-15 795 ± 5 13 15 15.0 20.0  bell-shaped spectrum HTML | PDF (41 KB)
M-S-840-B-I-7 840 ± 10 45 50 7.0 9.0  multi-humped spectrum HTML | PDF (45 KB)
M-S-840-B-I-15 840 ± 10 45 50 15.0 20.0  multi-humped spectrum HTML | PDF (39 KB)
M-S-840-G-I-20 840 ± 10 20 25 20.0 25.0  bell-shaped spectrum HTML | PDF (45 KB)
M-S-840-G-I-30 840 ± 10 20 25 30.0 35.0  bell-shaped spectrum HTML | PDF (27 KB)
M-S-850-G-I-20 850 ± 10 15 20 20.0 25.0  bell-shaped spectrum HTML | PDF (39 KB)
M-S-880-G-I-10 880 ± 10 30 40 10.0 15.0  bell-shaped spectrum HTML | PDF (43 KB)
M-S-1050-G-I-15 1050 ± 10 30 35 15.0 20.0  bell-shaped spectrum HTML | PDF (39 KB)
M-S-1050-B-I-10 1050 ± 10 60 70 10.0 15.0  multi-humped spectrum HTML | PDF (43 KB)

Optical characteristics of standard models with VOA

Key parameters of standard models are listed in the table below. The optical spectrum and the coherence function can be viewed as a web page (HTML) or downloaded in PDF format.

bell-shaped spectrum – bell-shaped spectrum, multi-humped spectrum – multi-humped spectrum.

Model number Center wavelength (nm) Spectral width, FWHM (nm) Output power, SM (mW) Optical spectrum and coherence function
Min. Typ. Min. Typ.
M-S-785-B-I-15-VA 785 ± 10 40 45 15.0 16.0  multi-humped spectrum HTML | PDF (36 KB)
M-S-840-B-I-15-VA 840 ± 10 45 50 15.0 16.0  multi-humped spectrum HTML | PDF (39 KB)

Physical Specifications

  • Overall dimensions (W × H × D): 251 × 112 × 192 mm (9.88 × 4.41 × 7.56 inches).
  • Weight (max): 4 kg.

Electrical Power Specifications

  • 100-240 V AC, 50/60 Hz, 40 VA MAX.

Product Customization Capabilities

Superlum offers product customization services. A number of the operating characteristics of the M-S-series light sources (e.g. the output power level, center wavelength, spectrum width etc.) may be modified to meet your specific requirements.

Laser Safety Measures

The most of High-Power SLDs of Superlum are Class 3B according to IEC/EN 60825-1:2014. All M-S-series BroadLighter light sources are equipped by the master key control, remote interlock connection, visual/audible alarm, informational warning stickers, etc.

Technical Documentation

Download Technical Product Specification in PDF format (191 KB)PDF (191 KB).
